Description
Key Features
- Impressively large, yet seamless view
- All-in-One design without complicated setup
- Easy delivery, installation, and maintenance
- Engaging front-facing presentation solution
- Flexible wireless content sharing solution
Product Description

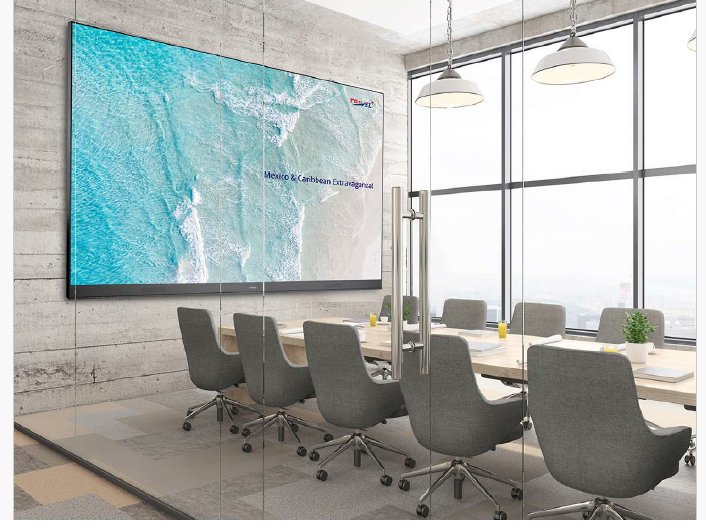

The ViewSonic® LDM135-151 is an innovative 135” All-in-One Direct View LED display that complements the design of high-end, enterprise conference rooms and lobbies. With 120% Rec. 709 wide color gamut, millions of mounted tiny LEDs for direct image production, and an ultra-slim 35 mm thickness & bezel-free seamless design, the LDM135-151 offers greater color, brightness, and contrast performance, giving viewers a magnificent visual impact, whether hanging on the wall or aluminum alloy floor stand. The All-in-One large screen display boasts easy delivery, installation, and maintenance with front-assembly modular design. The built-in screen sharing software enables multiple meeting presenters to cast out content wirelessly, whether using laptops, phones, or tablets. Compatible with AV control systems, the ViewSonic® LDM135-151 enables IT personnel to remotely setup and configure.
- RS-232
- Ambient Light Sensor
- USB 2.0 (5V/0.5A)
- USB 3.0 (5V/1A)
- HDMI Out
- HDMI In
- Audio Out
- USB-B (Service)
- IR Receiver
- LAN
- Menu Control: Stand-by
- Menu Control: Input Select
- Menu Control: Brightness
- Speakers
- Power Button
SPECIFICATION
| Screen Size: | 135″ |
| Display Area (mm): | 3000 (H) x 1687.5(V) |
| Native Resolution: | 1920×1080 |
| Panel Technology: | Direct view LED |
| Bonding Wire: | Copper |
| Pixel Pitch (mm): | 1.56 |
| Refresh Rate: | 3840Hz |
| Brightness (max.): | 600 nits (8 levels adjustable) |
| Contrast Ratio (typ.): | 6000:1 |
| Orientation: | Landscape |
| Viewing Angles (typ.): | H = 160, V = 160 |
| LED Lifetime (typ.): | 100,000 Hours |
| Local Storage: | Total 32GB (26GB available storage) |
| Resolution Support: | HDMI(640 x 480) to 1080p(1920 x 1080) |
| HDTV Compatibility: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency: | 31K-94kHz |
| Vertical Scan Rate: | 56-85Hz |
- INPUT
HDMI: x2(HDMI 1.4, HDCP 1.4) USB Type A: x3(USB3.0 x1, USB2.0 x2) RJ45 Input (Internet): x1 Wi-Fi Input: 2.4G/5G Hz - OUTPUT
HDMI out: x1(HDMI 1.4, HDCP 1.4) Speaker: 5W*2 Audio out (3.5mm): x1 USB Type A (Power): Shared with USB input(5V/1A x1, 5V/0.5A x2)
