Key Features

• High Brightness & Contrast: 4,000 ANSI Lumens and a 20,000:1 contrast ratio deliver brilliant images, even in well-lit rooms.
• Specialized Data Review Mode: Enhances every letter and digit, making spreadsheets and charts exceptionally easy to read.
• Infographic Mode: Optimized for displaying high-quality text and graphics with superior color gradation.
• Instant Connectivity: Equipped with dual HDMI and dual VGA ports for fast data transmission and versatile device support.
• SmartEco Technology: An eco-friendly mode that saves up to 70% of lamp power while extending the lamp life up to 15,000 hours.
• Auto Vertical Keystone: Projects a perfectly squared image from any angle, allowing for a quick and flexible setup.
• Retractable Adjustment Foot: Provides much better flexibility for setup in various meeting room sizes compared to standard projectors.

Technical Specifications

Display

1. Projection System: DLP Single 0.55″ XGA
2. Native Resolution: 1024 x 768 pixels (XGA)
3. Brightness (ANSI lumens): 4,000 Lumens
4. Contrast Ratio (FOFO): 20,000:1
5. Display Color: 1.07 Billion Colors
6. Light Source: Long-life Lamp
7. Light Source Life: Normal 6,000h / Eco 10,000h / SmartEco 10,000h / LampSave 15,000h

Optical

1. Throw Ratio: 1.96~2.15
2. Zoom Ratio: 1.1x
3. Lens: F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
4. Keystone Correction: Auto Vertical ± 40 degrees
5. Projection Offset: 110%

Audio

• Built-in Speaker: 10W x 1

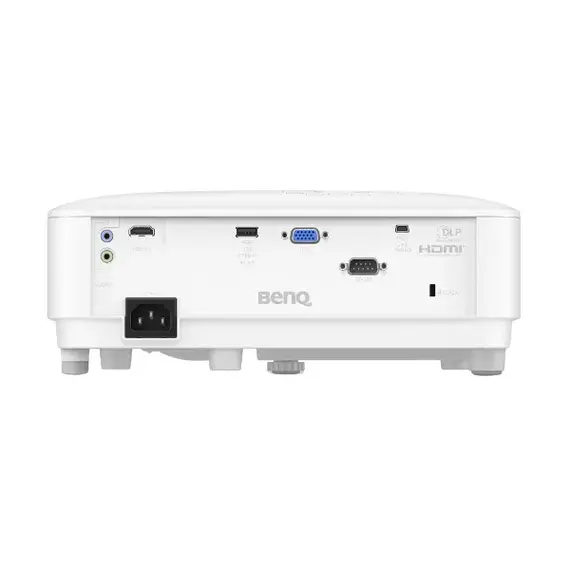

Connectivity (I/O Interface)

1. HDMI: x2 (HDMI 1.4)
2. USB Type-A: x1 (1.5A Power Supply)
3. USB Type Mini-B: x1 (Service/Firmware)
4. PC (D-sub 15pin): x1
5. Monitor Out (D-sub 15pin): x1
6. RS232 (DB-9pin): x1
7. S-Video / Composite Video: x1 / x1
