Key Features

• Crystal Clear Clarity: 4,000 ANSI Lumens brightness and 20,000:1 contrast for vibrant images even in lit rooms.
• Premium Glass Lens: High-quality all-glass lenses ensure long-lasting image sharpness and precision.
• Data Review Mode: Exclusive mode that makes every letter and digit in charts or reports stand out clearly.
• Dual HDMI Connectivity: Dual ports for faster data transmission and easy switching between multiple devices.
• Auto Vertical Keystone: Quickly aligns the image to a perfect square from any angle for a faster setup.
• Cost-Efficient: SmartEco technology saves up to 70% lamp power, extending lamp life up to 15,000 hours.
• Ready to Go: Built-in 10W speaker and compact design make it ideal for mobile or fixed presentations.

Technical Specifications

Display

1. Projection System: DLP Single 0.55″ XGA
2. Native Resolution: 1024 x 768 pixels (XGA)
3. Brightness (ANSI lumens): 4,000 Lumens
4. Contrast Ratio (FOFO): 20,000:1
5. Display Color: 30-bit (1.07 Billion Colors)
6. Native Aspect Ratio: Native 4:3 (5 aspect ratios selectable)
7. Light Source: Lamp
8. Light Source Life: Normal 6,000 hrs / Eco 10,000 hrs / SmartEco 10,000 hrs / LampSave 15,000 hrs

Optical

1. Throw Ratio: 1.96~2.15
2. Zoom Ratio: 1.1x
3. Lens: F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
4. Keystone Correction: Auto Vertical ± 40 degrees
5. Projection Offset: 110%

Audio

• Built-in Speaker: 10W x 1

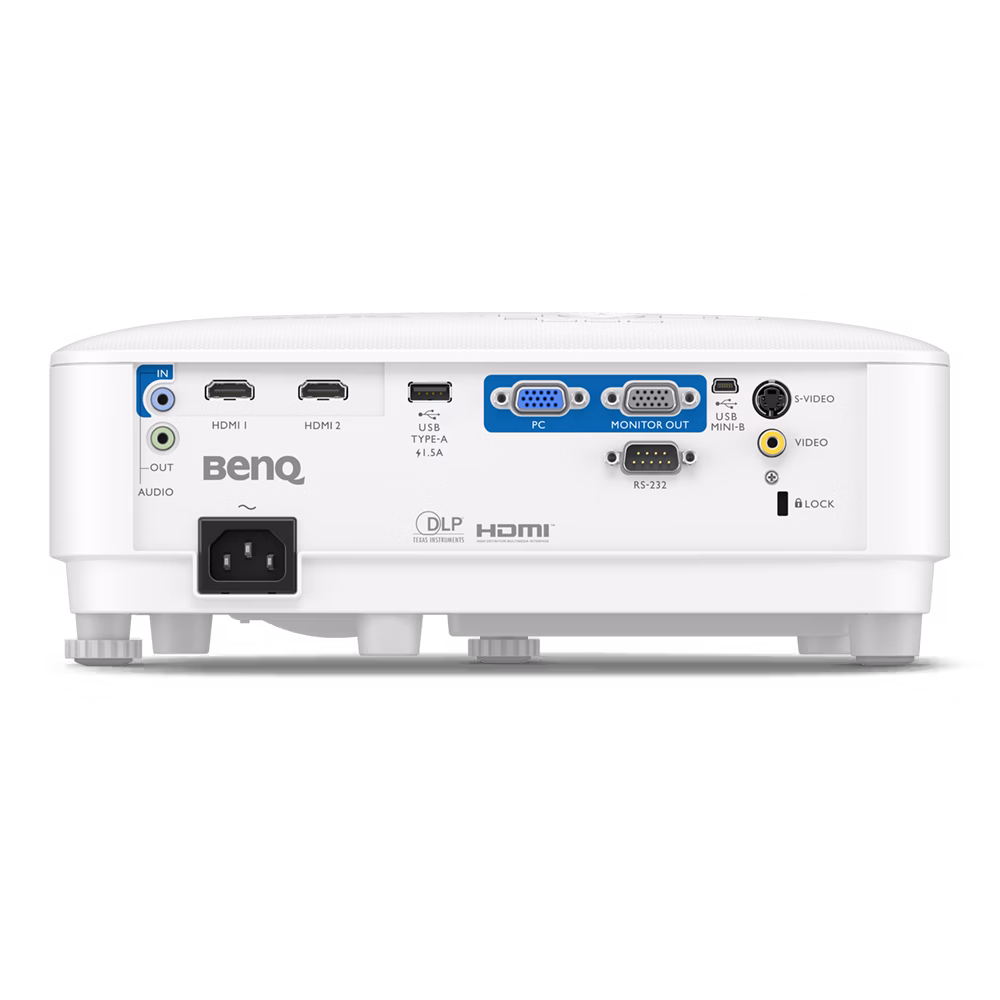

Connectivity (I/O Interface)

1. HDMI: x2 (HDMI 1.4)
2. PC (D-sub 15pin): x1
3. Monitor Out (D-sub 15pin): x1
4. Composite Video in (RCA): x1
5. S-Video in (Mini DIN 4pin): x1
6. Audio In/Out (3.5mm Mini Jack): x1 / x1
7. USB Type-A: x1 (1.5A Power Supply)
8. USB Type Mini-B: x1 (Firmware download & Service)
9. RS232 (DB-9pin): x1
